Sale!

Carport canopy
20W 30L 12H (ft)

$2,430.00 $1,700.00

Model:  Shelter Canopy Specifications: 20W30L12H (ft)20′ x 30′ single Truss PVC Fabric  Shelter | Fire Retardant | Water Resistant | UV Protected Structure:

  • Overall dimensions: (W) 20ft x (L) 30ft x (H) 12ft

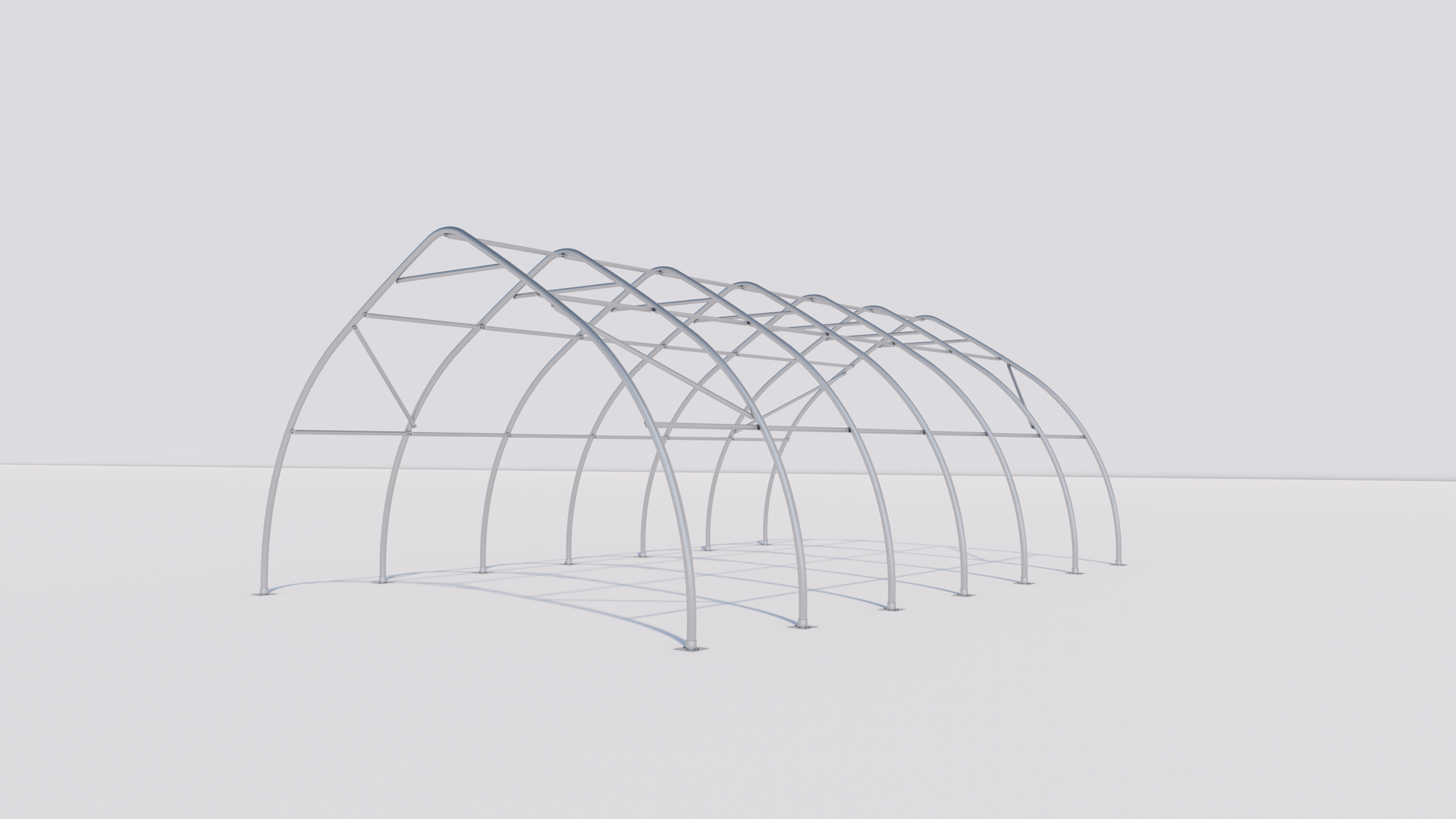

  • Structure: single truss galvanized steel
  • Truss spacing: 5ft
  • Truss quantity:6 groups
  • Anchor footplates: 12

Add to Wishlist
Add to Wishlist
Categories: , SKU: FLL-NCL-CRP-W

Description

Model:  Shelter Canopy Specifications: 20W30L12H (ft)20′ x 30′ single Truss PVC Fabric  Shelter | Fire Retardant | Water Resistant | UV Protected Structure:

  • Overall dimensions: (W) 20ft x (L) 30ft x (H) 12ft
  • Structure: single truss galvanized steel
  • Truss spacing: 5ft
  • Truss quantity:6 groups
  • Anchor footplates: 12

• Ratchet tide tension system and easy-slide cross rails keep the cover smooth and taut• Bolt-together hardware at every connection point ensures maximum strength and durability• Universal steel foot plates for easy and solid connection to  cement .

  • Anchoring and tide down

Base plate recommendation anchoring to concrete base floor by using sleeve anchor  drilling 3 holes on base plate Pattern then placing sleeve anchor and tighten to base plate. Attached straps to horizontal steel tide down pipe and attach strap to base plate rachet then tighten follow the same above instructions to the remaining base plates. Fabric:

  • Heavy duty 450gsm PVC
  • Resistant to flame, chemicals, and oil
  • Waterproof and UV protected
  • Life span: 8 to 10 years

Certifications:

  • SGS
  • CE
  • ISO 9001:2008

Packaging:

  • Shipping size: 86” x 29” x 17”
  • Shipping weight: 700 lbs

*** Unloading: Forklift or equivalent required ****No building permits required, all of our products fall under the temporary structures category/ storage ragtops. and do not require Planning Permits, we recommend obtaining the consent of your local council to avoid county scrutiny.

Additional information

Weight 700 lbs
Dimensions 86 × 29 × 17 in
